EPE Foam Sheet Extrusion Line

Home / EPE Machinery /EPE Foam Sheet Extrusion Line Factory, Suppliers, Manufacturers - China RunJie Machinery

EPE Foam Sheet Extrusion Line

Quick Details

Condition:New

Application:Sheet

Plastic Processed:PE, LDPE(Low Density Polyethylene)

Output (kg/h):300 - 500 kg/h

Screw Design:Single-screw

Screw Material:38CrMnAlA

Screw Speed (rpm):50 rpm

Showroom Location:none

Place of Origin:Shandong, China

Brand Name:Runjie/JLD

Voltage:380V 50HZ 3Phase(Customized)

Dimension(L*W*H):40*7*3m

Power (kW):330

Weight:7.5T

Warranty:1 Year

After-sales Service Provided:Video technical support, Free spare parts, Field installation, commissioning and training, Online support, Engineers available to service machinery overseas

Key Selling Points:Long Service Life

After Warranty Service:Online support

Local Service Location:none

Applicable Industries:Manufacturing Plant

Marketing Type:Ordinary Product

Video outgoing-inspection:Provided

Machinery Test Report:Not Available

Warranty of core components:1 Year

Core Components:Motor

Raw Material:LDPE

Product Type:EPE foam sheet, block, pipe, rod and net

Screw Diameter:180mm

Output Capacity:300-500kg/h

Products' Thickness Range:3-18mm

Products' Width Range:1000-4000mm

Keywords:plastic epe baby papa mat extruder machine

Finished Products:EPE Foam Profile

Screw diameter (mm):180 mm

Screw L/D Ratio:55:1


Foamed Plastic PE/EPE Baby Crawling/Papa Mat Extruder Machine Production Line can produce EPE foam materials which are flexible packaging materials with good elasticity, shock resistance, excellent pressure reducing, shockproof and natural degradable. Because of the low cost and high grade, they are widely used in the packaging of electronic instrumentation, household appliances, computer, bicycle, various furniture, leather shoes, glass ceramics, etc.

Our EPE foam sheet extrusion line apply for the production of EPE foam materials. After thawing the LDPE resin mixed with butane gas, talcum powder, anti-shrink agent and other agents. With different mold heads, the extruder can foam and form various shapes of products, such as sheet, tube, rod, angle profiles (L or U), round and batten. Then use the different ancillary equipment to roll, cut, laminate or coating.


Model

L*W*H

Weight

Screw Diameter

Total Power

Foaming Ratio

Output Capacity

Products' Width

Products' Thickness



(m)

(ton)

(mm)

(kw)



(kg/h)

(mm)

(mm)

EPE-75

20*4*3

3

75

55

30-40

25-50

1600

0.3-3

EPE-90

22*4*3

7.5

90

75

30-40

60-90

1600-2000

0.3-5

EPE-105

25*4*3

8.5

105

95

30-40

80-120

1600-2500

0.3-6

EPE-120

27*4*3

9.5

120

115

30-40

120-180

1600-3000

0.5-8

EPE-135

35*4*3

10.5

135

150

30-40

170-240

1600-3000

1-10

EPE-150

38*7*3

11

150

220

30-40

250-300

1600-3000

2-12

EPE-180

41*7*3

11

180

330

30-40

300-400

1600-3000

2-12

EPE-200

42*7*3

15

200

400

30-40

350-500

1600-3000

3-18

EPE-220

45*7*3

18

220

320

30-40

400-600

1600-4000

3-20

EPE-250

50*7*3

23

250

330

30-40

500-800

1600-4000

4-20

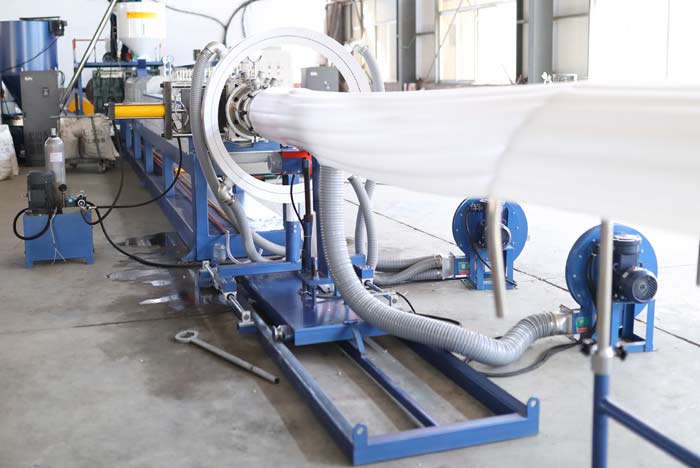

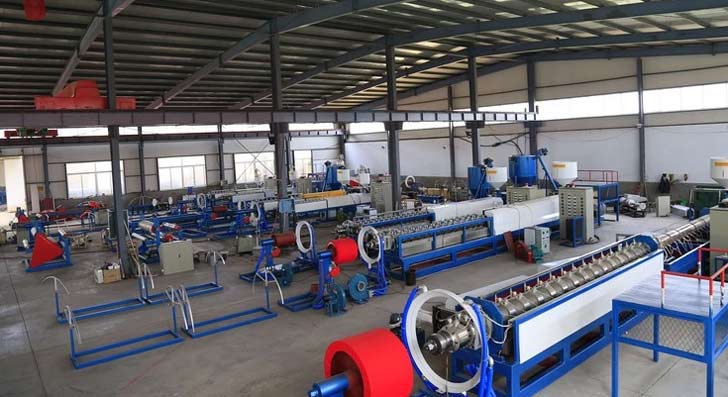

EPE Foam Sheet Extrusion Line

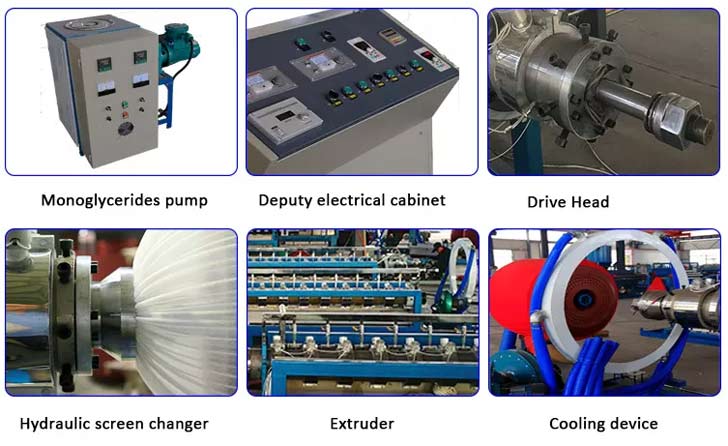

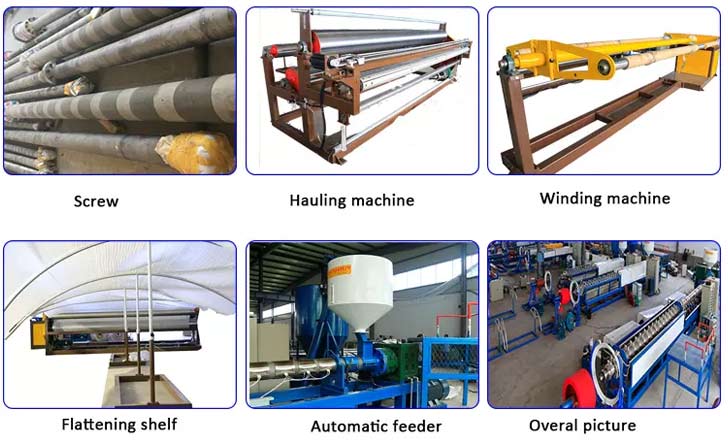

EPE Foam Sheet Extrusion Line Product Details
EPE Foam Sheet Extrusion Line Product Details
