EPE Recyling Machine

EPE foam recycling and pelleting machine , is suitable for epe foaming waste material after foaming, to processing to granule, to used in epe foam reproduction, which is adopted to basiconic screw barrel, to improve the feeding speed, and heating temperature stable, operating easily, and get high efficient.

EPE Recyling machine main technical parameters:

Extruder specifications mm

100

125

Output kg/h

150—200

200--250

Installed    capacity kw

30

35

Extruder    power  kw

22

30

Pelletizing    power kw

1.5

1.5

weight T

≈1.5

≈1.7


EPE recyling machine technological process of production

The waste EPE foam sheet is added into the filler mouth of the EPE recyling machine, broken, melted and plasticized by the screw cylinder, and discharged through the exhaust mouth, then extruded into strips by the machine head, and the strips are cooled by water and then cut into particles by the granulator.

The structure of the equipment

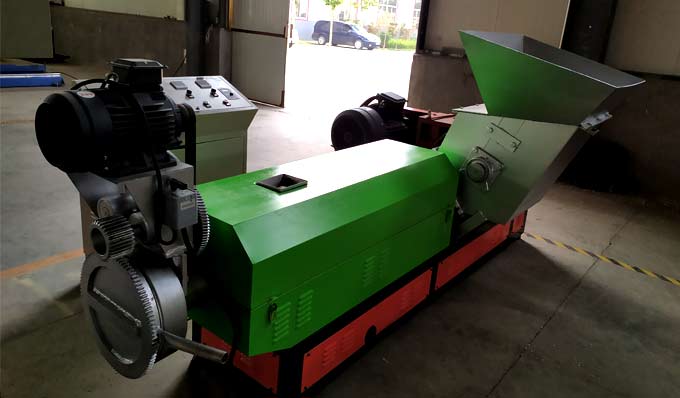

The EPE recyling machine consists of an extruder, a water tank and a pelletizer.The motor is three-phase asynchronous motor, with domestic standard: rated voltage 380V, frequency 50Hz.


Preparation before installation

Requirements: the supply voltage should be 380V(415V,220V), the frequency should be 50Hz(60Hz), the transformer capacity should be determined according to the installed capacity of the production line.Plant area is determined according to production line length.


Production and operation

Before starting up, the preset temperature of the three zones are all 200 degrees Celsius. After the temperature reaches the set temperature, the machine head (the third zone) can be set as 170 degrees after starting up. The size of the mesh filter shall be determined according to the requirements of producing particles.


Export standard packing

1.Use the PE foam sheet pack every part to make sure every part can not damage

2.Easy rust parts coating anti-rust oil then laminate with strech film

3.Use wood fix every part in container to make sure them can not move

4. Plastic film suitable for shipping

5.As per customer's request
