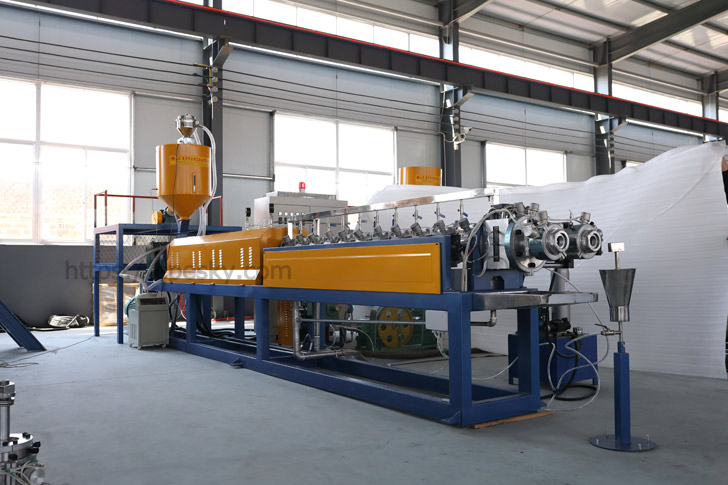

EPE Foam Pipe/Tube/Rod/Stick/Profile Making Machine can produce any kinds of epe foaming product, such as sheet, pipe, rod, safe edge, angle bead, shaped product. Which is widely used in electric, household appliances, furniture, artware, fruit, air conditioner sheath, pipe insulation, toy guardrail area and our children toy products, sports fitness equipment & fishery due to its high foaming ratio, good elasticity and nice insulation features.
| Model | FPG-55 | FPG-65 | FPG-75 | FPG-90 | FPG-105 | FPG-120 |
| Extruder | Φ55/40 | Φ65/40 | Φ75/50 | Φ90/55 | Φ105/55 | Φ120/55 |
| Screw speed (r/min) | 50-75 | 50-75 | 50-75 | 50-75 | 50-75 | 50-75 |
| Foaming ratio (times) | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
| Product spec. (mm) | Φ10-35 | Φ10-40 | Φ10-60 | Φ20-80 | Φ20-100 | Φ20-120 |
| Cooling method | Water cooling | |||||
| Installed capacity(KW) | 45 | 50 | 55 | 75 | 95 | 115 |
| Overall dimension(M) | 12×1.3×1.7 | 15×1.3×1.7 | 16×1.3×1.7 | 18×1.6×1.7 | 20×1.8×1.8 | 22×1.8×1.8 |
| Total weight(T) | 4 | 5.5 | 6 | 8 | 9 | 10 |

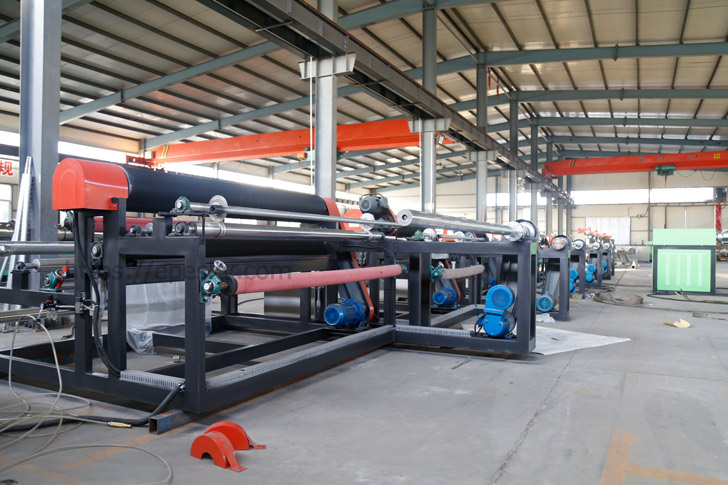

EPE Foam Sheet/ FILM laminating Machine is a deeply processing equipment of EPE foam sheet/film products,
Mainly used for the tectorial surface of EPE foam sheet/film.The material can be PE
film, plated Aluminium foil, plastic-coated paper, plastic-coated fabric and so on.
Laminated foam sheet increases intensity, water proof ,and can be printed character,
picture, improving the products grade, widely used for the packing of box lining, life
vest, wooden floor under layer. Car have lock, motor adumbrate cushion, household appliance. high-top Pottery and so on
laminating machine is a kind of deeply-processed equipment for PE foam sheet. It is to make laminated product with PE film or aluminum foil. The laminated foamed sheet can improve the intensity with the features of damp proofing, waterproofing and good surface. Furthermore, it can print words and pictures on surface, and further improve the quality and applications. It can be used in the packing of inner, precision instrument, top-grade porcelain and so on.
HR laminating machine is mainly use heat conducting oil as heat transfer medium, symport sheets and films. It has the advantage of good effect with embossing and strong adhesion, high efficiency, easy to operate.
EPE Foam Sheet/ FILM laminating Machine Main Technical Parameter:
Model | Dimension(m) | Main Motor | Total Power(kw) | Max Processing |
FM-1400 | 4.5*1.8*1.2 | 1.5 | 25 | 1400 |
FM-1600 | 4.5*2.0*1.2 | 2.2 | 28 | 1600 |
FM-1800 | 4.5*2.2*.1.2 | 4 | 35 | 1800 |
FM-2000 | 4.5*2.3*.1.2 | 4 | 40 | 2000 |

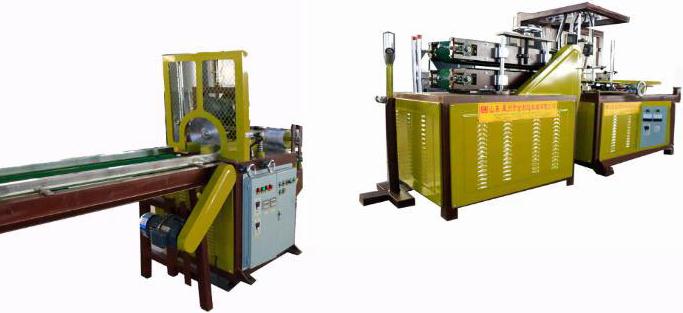

IXPE/XPE Tube Rolling Machine
The working principle of the PEF/XPE Tube Rolling Machine:
1. The XPE/PEF/EPE sheet will be cut according to the required tube diameter
2.The cut XPE/PEF/EPE sheet will be coated with aluminum film or color film
3. And then bonded together through heat melting to form tubular packaging products.
PEF/XPE Tube Rolling Machine Main application:
It is widely used in the fields of water pipe, air-conditioning heat-insulation pipe, floor heating insulation pipe, and children's playground protection.
The pipe diameter can be adjusted according to the production requirement, and the machine operation is simple and flexible.
