EPE foam plank machine Factory, Suppliers, Manufacturers

EPE foam plank machine can make different foam sheet width and thickness according to customer requirement. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile and so on through changing mould and machine parts.

EPE foam plank machine-epesky.com

The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity. After laminating, the foam sheet will get high dampproof performance. These products are mainly used for placing under floor.

Model	Screw dia (mm)	width (mm)	Thickness(mm)	Total power (KW)	Output (kg/h)	Foaming times	Dimension(m)	Weight
EFP-75	75	850～1700	0.2-3	55	25-50	9-64	2043	4T
EFP-90	90	850～1700	0.2-4	75	60-90		2243	5T
EFP-105	105	850～1700	0.3-6.5	95	80-120		2543	5.5T
EFP-120	120	850～1700	0.5-8	115	120-180		2743	6T
EFP-135	135	850～1700	1-10	150	170-220		3543	7.5T
EFP-150	150	850～1700	2-12	220	250-300		3873	10T
EFP-170	170	850～1700	2-14	320	100-450		4073	12T
EFP-180	180	850～2200	3-16	330	300-500		4173	13T
EFP-200	200	850～2200	3-25	400	350-650		4273	14T
EFP-220	220	850～2200	3-27	450	400-700		4373	15.5T
EFP-250	250	850～2200	3-30	500	450-800		4673	17T

EPE Foam Sheet Bonding Machine

EPE Foam Sheet Bonding Machine（epe foam thickening machine/plastic foam thermal bonding machine） is a deep processing equipment for EPE foam sheet products. It is mainly used for bonding thickening and compound thickening of EPE foam sheet.

EPE Foam Sheet Bonding Machine is to fuse two or more layers of EPE pearl wool foam sheet to achieve the purpose of increasing the thickness. It is also possible to compound the OPP and the coated woven bag with the pearl wool PE film. The machine is reasonable in structure, high in production efficiency and simple in operation, and is an ideal equipment for producing thick materials.

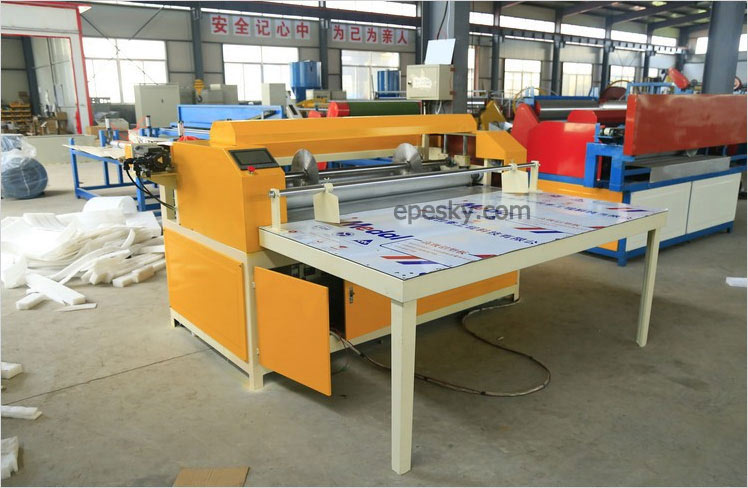

EPE foam plank cutting machine

EPE foam plank cutting machine is mainly used for automatic trimming and fixed length cutting of pearl wool sheet after compounding, and can cut pearl wool coil, sheet, EVA and so on. The machine adopts advanced microcomputer control, reliable performance, fast cutting speed, maximum cutting width of 2 meters, can meet various specifications, greatly improve production efficiency and reduce production costs.

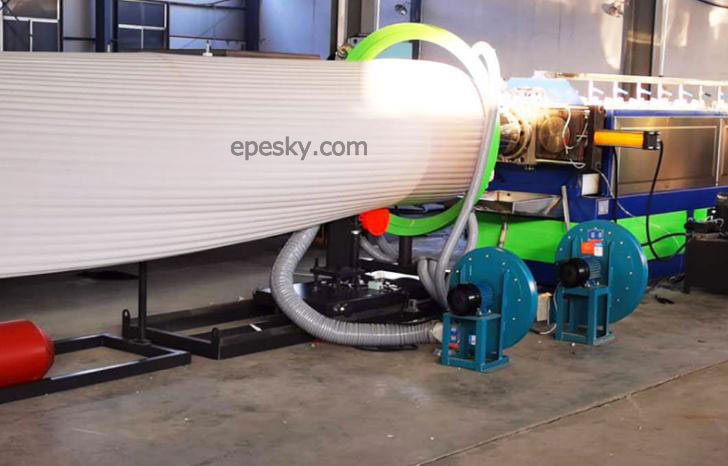

EPE Foam sheet machine

EPE Foam sheet machine is mainly used to produce EPE foam sheet.EPE foamed sheet/film, also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproofing, sound insulation, heat preservation and good plasticity.

EPE Foam Tube/Rod/Profiles Extrusion Line

EPE Foam Tube/Rod/Profiles Extrusion Line can produce various kinds of EPE foam products such as sheet shape, tube shape, rod shape, edge protection, corner protection, profiled material, etc.

PE Extrusion Laminating Machine

PE Extrusion laminating machine applicable to laminating EPE foam sheet with PE film, OPP color film, Aluminum film, PVC, knitted cotton, LDPE or PP composite materials, aluminum foil, web paper, cloth and other substrates.

Fruit net machine

Foaming net is a new type of flexible packaging material. Due to its unique expandable mesh structure and elastic foamed web, it is widely used in the packaging of glass products, precision instruments and various vegetables, fruits, flowers and other products.

Foam pipe coating machine

The PE foam pipe coating machine (extrusion lamination machine for pipe) can coat the PE film on the surface of EPE pipes. Its screw melt and plasticize the PE materials, then extrude it through the die head and mould.

EPE Foam Sheet Bonding Machine

EPE Foam Sheet Bonding Machine is a deep processing equipment for EPE foam sheet products. It is to fuse two or more layers of EPE pearl wool foam sheet to achieve the purpose of increasing the thickness.

EPE Foam Sheet Cutting Machine

EPE Foam Sheet Cutting Machine is mainly used for automatic trimming and fixed length cutting of pearl wool sheet after compounding, and can cut pearl wool coil, sheet, EVA and so on.

Tube Rolling Machine

The cut XPE/PEF/EPE sheet will be coated with aluminum film or color film and then bonded together through heat melting to form tubular packaging products.

EPE Coating Machine

EPE Foam Sheet Coating Machine is mainly used for the surface layer laminating of EPE foam sheet (film) and membrane with aluminum foil, paper.

EPE Recyling Machine

EPE foam recycling and pelleting machine , is suitable for epe foaming waste material after foaming, to processing to granule, to used in epe foam reproduction.

XPE Thickening And Laminating Machine

XPE Thickening And Laminating Machine is suitable for climbing mat embossing and thickening. It is used to produce climbing mats, yoga mats, picnic mats...

EPE Bag Making Machine

EPE Bag making machine is used to make bags with epe,bubble film and other materials.
