What is the features of our epe foam roll/board making machine?
1.Damping,Resist static electricity,Dust-proof
2.packaging material:electronic equipment,pottery,glass products,furniture
3.insulation material:Agriculture,building
What is description of our epe foam roll/board making machine?
PE foam sheet extruder producing fine closed cell Polyethylene foam sheet, by our unique
designed Screw and Barrel system, using Butane foaming agent, Talc powder or Talc master
batch and Anti-shrinking agent (GMS for short-Surface Active Agent) by accumulated experience and advanced technology.
1.PE foam and related products are made from PE resin and it is expanded and formed into shapes by being heated and extruded. And it is easy to be decompounded and environment friendly.
2. Its key function is cushion protecting and warmth reserving.
3. Nowadays it is the most popularly used for modern batch production products, especially export packaging industry, including electronic industry (such as PC computer, laptop, electronic chips and parts, inverter, TV, air conditioner, refrigerator), furniture, glassware,
garments, metal parts, etc.
4. Whoever aims at modern packaging and export, he has to use PE foam for the following reasons: Packaging with air bubble film, EPS and plastic film is forbidden in many countries.Paper packaging is so expensive.
5. PE foam products have quite a few varieties: Sheets for direct wrapping and to make bags; PE sheet may be coated with plastic film, craft paperand aluminum foil. It may be laminated (by electricity or LPG flame) into thick blocks. Then cut them to make different containers or frames. PE fruit net is direct for fruit and small matter's wrapping. If you add special molds, you may make different profiles for door hinges and furniture packing.
| Modelo | Tornillo Dia (mm) | Anchura Máxima (mm) | Grosor mm | Potencia Total(KW) | Capacidad kg/h | Relación Espumante | Epe Foam Extruder Price |
| EFP-75 | 75 | 1600 | 0.2-3 | 55 | 25-50 | 9-64 | $29000.00~157,857.00 |
| EFP-90 | 90 | 1600~2000 | 0.2-5 | 75 | 60-90 | ||
| EFP-105 | 105 | 1600~2500 | 0.3-6.5 | 95 | 80-120 | ||
| EFP-120 | 120 | 1600~3000 | 0.5-8 | 115 | 120-180 | ||
| EFP-135 | 135 | 1600~3000 | 1-10 | 150 | 170-220 | ||
| EFP-150 | 150 | 1600~3000 | 2-12 | 220 | 250-300 | ||
| EFP-170 | 170 | 1600~3000 | 2-14 | 320 | 100-450 | ||
| EFP-180 | 180 | 1600~3000 | 3-16 | 330 | 300-500 | ||
| EFP-200 | 200 | 1600~3000 | 3-25 | 400 | 350-650 | ||
| EFP-220 | 220 | 1600~3000 | 3-27 | 450 | 400-700 | ||
| EFP-250 | 250 | 1600~3000 | 3-30 | 500 | 450-800 |

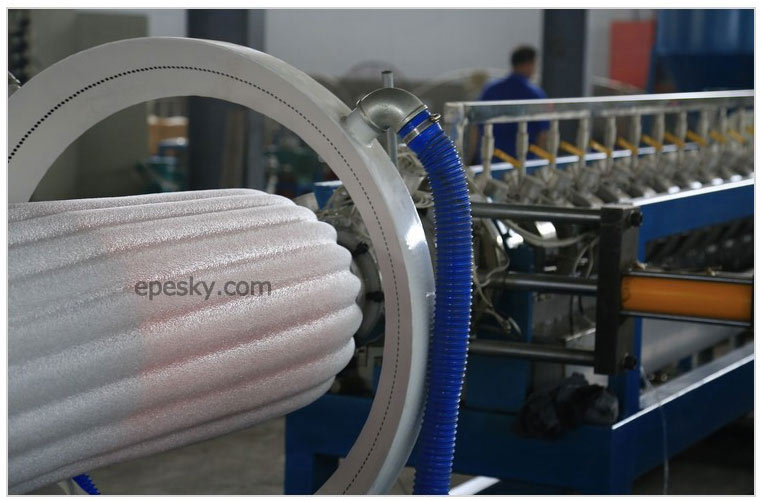

Our epe foam roll/board making machine adopts innovative technology and it can be operated full-automatically. It is equipped with an automatic thickness adjustment device. It can also change the net automatically without stopping the machine or break the sheets. The electrical control system is selected from well-known international brands, The temperature control system is digital display type and the temperature can be controlled automatically, the motor is explosion-proof type, the machine is controlled by frequency controller, there is also recycling cooling water to cool the barrel, so the whole line is energy saving, high efficient, safe and stable.
