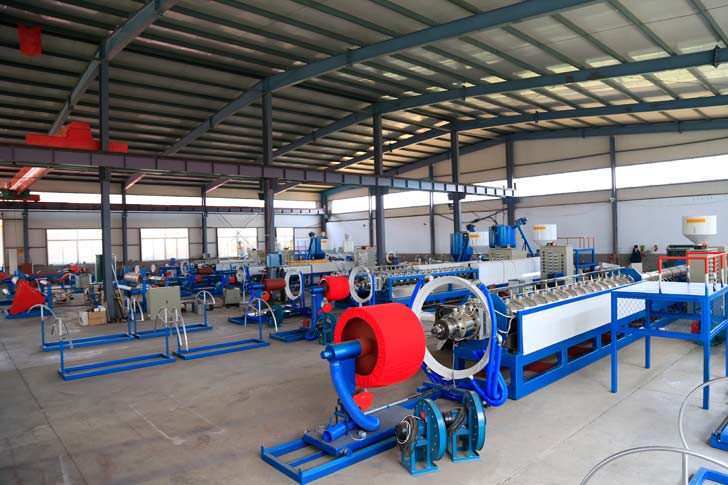

Main system details of the epe production line

Main system details of the epe production line

No.

Name

Item

Spec./model



1



Extruder

Screw    dia. mm

75、90、105、120、135、150、170、180、200、250、300

L:D    : L/D

55

Drive    motor speed control mode

Frequency    controller

The    heater form

Far    infrared heating or cast aluminium heater

Heating    zone and temperature control type

12    or 14 zones automatic temperature control

Cooling    method

Water    cooling

2

Butane    pump

Model

Single    cylinder piston metering pump

Rated    flow l/h

40、63、80、100、120、160

Outlet    pressure Mpa

>25

Motor    power kw

3-4

3

Monostearin    pump

Model

Single    cylinder piston metering pump

Rated    flow l/h

3.8、6、8、10、12

Outlet    pressure Mpa

>25

Motor    power kw

0.75、1.1、1.5

Monostearin    pot capacity l

7

4

Machine    head

Machine    head spec. mm

75、90、105、120、135、150、170、180 、200、250、300

Heater form

Cast    aluminium heater

Heating    zone and temperature control type

2    zones automatic temperature control

Cooling    style

Water    cooling

5

Sizing    and cutting

Sizing    drum size mm

800—1500(or customer order)

Wind    ring dia. mm

500—700(based on customer request)

The    fan motor power  kw

0.75

Sizing    drum motor power kw

0.55

Cutting    device motor power kw

0.18

Blade    diameter mm

200-240

6

Traction

Pulling    roll diameter. mm

270—320

Pulling    motor power kw

1.5(speed    control)

speed    ratio of reducer

15

7

Rolling    machine

Rolling style

Double-station    rolling

Torque    motor capacity Nm

10

Filp    motor power kw

0.55

Metering    length method

Automatic    metering device

Max.    Rolling diameter mm

1500


Want to know the new price? Contact me!

We promise to reply you with in 12 hours
