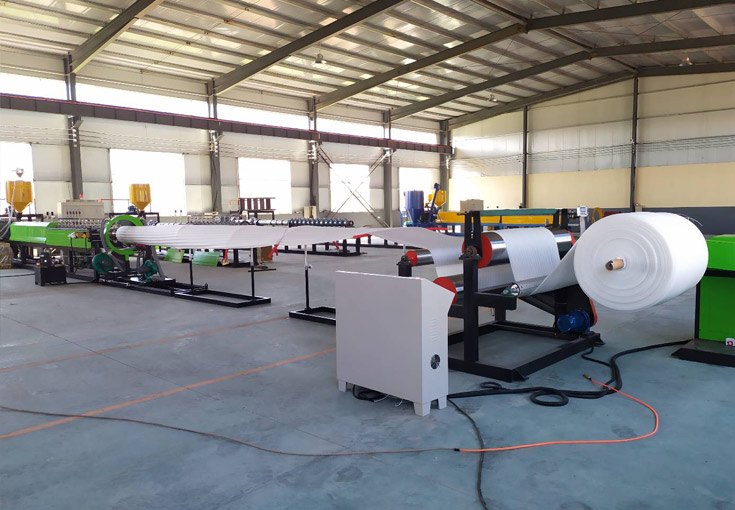

Model 135 EPE sheet extruding line
Model 135 is medium-size EPE sheet extruding line. It can make EPE sheet with thickness 1-9mm (corresponding to width 1m-4m, the wider, the thinner).
Although it can make both thin sheets and thick sheets, it doesn’t mean that the sheets of all the thicknesses have the same high quality. For example, if you make 1m wide sheets with EPE sheet extruding line, you can make thickness from 1-9mm.
However, the sheets with the best quality and lowest density is of thickness about 3-5mm. 1mm and 9mm are the limit thickness the machine can make, so the sheet quality is not perfect.
So, when you choose the machine model, you can’t expect that it can make all the thicknesses you want, you have to decide what thicknesses are the best sold in the local market, then choose the machine according to that. Otherwise, if you have competitors, you will never win them.
The screw length of Model 135 EPE sheet extruding line is 7425mm. Adding die head, gearbox, the length of the main extruder is about 9m. The workshop needed for 135 line is 30m long, 4-5 meter wide, 3.5m high. Output of model 135 extruder is about 220kg/h. The whole line needs 3 workers per shift. If the workers are experienced, then 2 workers are enough.
Total installed power of model 135 extruder is 150kW. Actual electricity consumption is 75kWh. The thickness range made by this model is not the hot sold so this model is not so popular in China.
Manufacturers usually make sheets with thickness 2-5mm with 135 model of machine and EPE sheet made by this model is normally used for packing express parcels.
