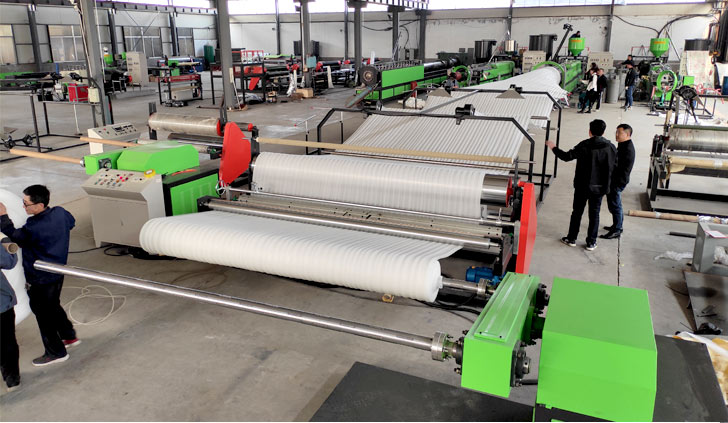

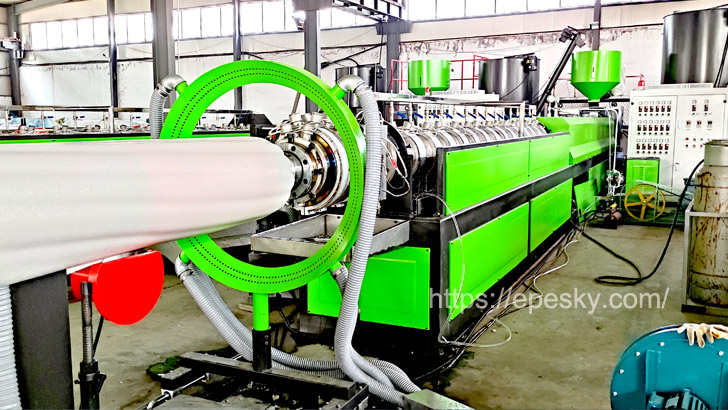

PE Foam Sheet Extrusion Line

Home / EPE Machinery /PE Foam Sheet Extrusion Line Factory, Suppliers, Manufacturers - China RunJie Machinery

PE Foam Sheet Extrusion Line

EPE foam products (sheet or film) are made of polyethylene raw materials, which are heated, melted, extruded, catalyzed, and foamed by the PE foam sheet extrusion line. The characteristics of EPE foam sheets are sound insulation and impact resistance, shockproof, waterproof, non-toxic, no peculiar smell, soft, etc. The EPE foam sheet extrusion line can form sheets with a thickness of 0.2-12mm at one time.



We can use the EPE foam sheet bonding machine (or EPE Foam Thickening machine  ) to combine two or three layers of sheets to get a thicker one.  We can also use the epe foam sheet laminating machine to laminate epe sheets with aluminum foil, plastic film, fabric, leather, etc to make packaging materials or filling materials. The PE foam sheet extrusion line can also produce pipes, profiles, bars, nets and other products with the corresponding auxiliary machine parts and moulds.

PE Foam Sheet Extrusion Line
PE Foam Sheet Extrusion Line

ModelScrew Dia(mm)Screw L:DOutput(kg/h)Thickness(mm)Width(mm)Foaming timesTotal power(kw)Dimension(mm)Weight(T)
EFP-17017055:1≤4002-15≤180016-4725032000 x 2800 x 280015
EFP-18018055:1≤4502.5-18≤200015-6030037000 x 2800 x 350016
EFP-20020055:1≤5502.5-20≤200015-6035038000 x 2800 x 380017.5
EFP-22022055:1≤7002.5-25≤200015-6042042000 x 2800 x 380020
EFP-25025055:1≤8002.5-25≤200015-6048045000 x 2800 x 380025

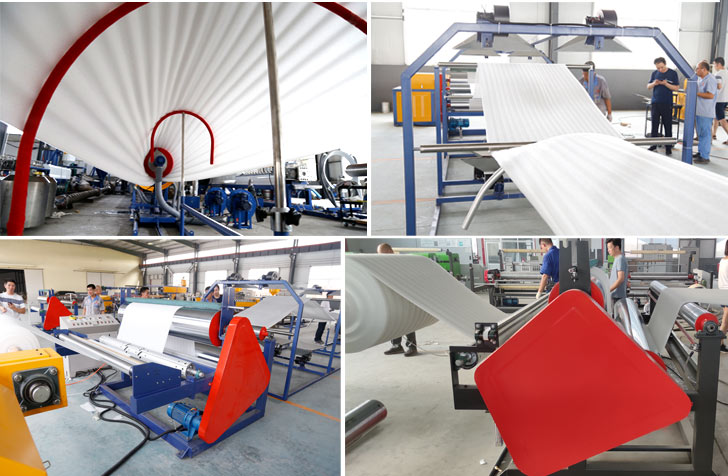

PE Foam Sheet Line Overseas Installation

We have engineers in South-east Asia, India, South American countries and African countries. It is easy for our customers to install and run the machine.





Want to know the new price? Contact me!

We promise to reply you with in 12 hours
