What are the complete sets of equipment for the EPE baby mat? What's the use of them?
What raw material and additives should be used for making EPE mats? Is it convenient to buy abroad?
The whole set of equipment for producing EPE mat includes: EPE sheet extruder, EPE bonding machine (or EPE thickening machine) , extruded lamination machine, EPE cutting machine, EPE sewing machine and EPE recycling machine. Altogether 6 machines.
Where are EPE baby mats production line sold?
The whole production line for making EPE baby mats includes EPE sheet extruder, EPE foam bonding machine, extrusion laminating machine, automatic cutting machine, sewing machine and recycling machine.
Model 220 EPE foam extrusion machine
Screw diameter of model 220 EPE foam extrusion machine is 220mm, L/D ratio is 55:1, so its screw length is 21200mm. Adding hydraulic screen changer, die head, gearbox and motor, total length of the extruder is about 14m. The whole extruding line needs a workshop of 45x6mx3.5m.
EPE foam baby mats are getting more and more popular in both China and abroad

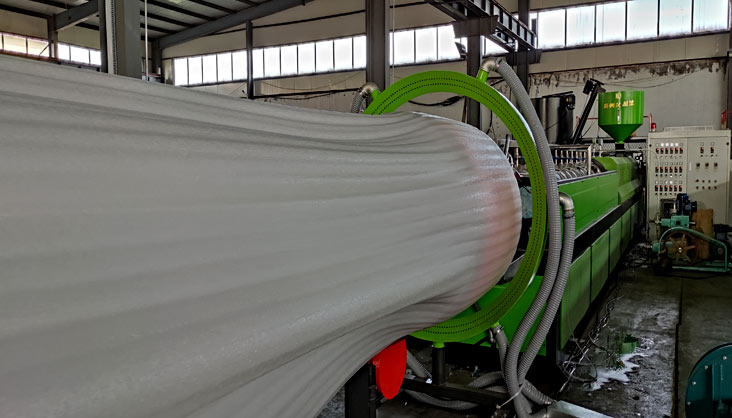

300-Type EPE extruder machine—-Detailed application of different types of epe sheet manufacturing ma

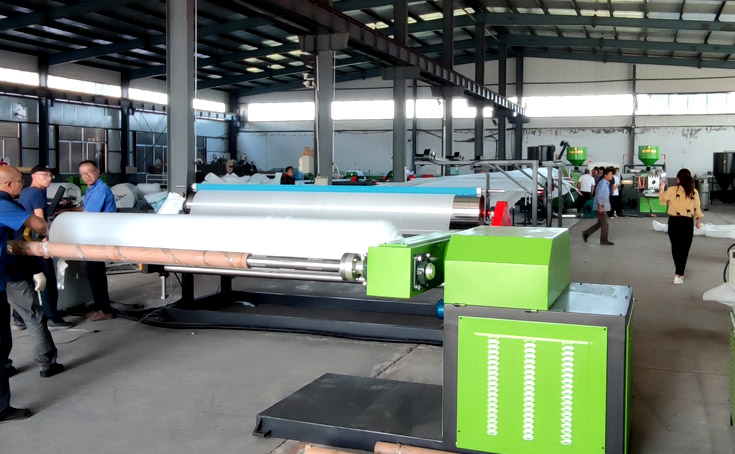

Model 200 EPE extruder
The screw diameter of model 200 EPE extruder is 200mm, its length is 11000mm. Adding hydraulic screen changer, die head, gearbox, motor, its length is 13m. The workshop needed for the whole 200 line is 45mx6mx3.5m. If we send machines abroad with a container, we need a 45HQ, even this, we still need to dismantle the die head otherwise it can’t be put into the container.
Model 180 EPE foam extrusion line
Model 180 EPE foam extrusion line takes an area of 38mx6mx3.5m. It can make 3mm-18mm thick sheets. If you make 2m-wide sheets, you can get 2mm thickness, too. Its output is about 300-500kg/h. (capacity differs according to different sheet width and thickness). Generally speaking, if you make thin and narrow sheets, its output must be lower than if you make thick and wide sheets.
Model 105 EPE Extruding Line
The Model 105 EPE Extruding Line is a representative type in Chinese market. 105 means the screw diameter is 105mm, the LD ratio of the screw is 55:1, so the length of the 105 screw is 105x55=5775mm.
Model 120 EPE foam sheet making machine
The sheet thickness range made by Model 120 EPE foam sheet making machine is 0.5-7mm. (for width 900-4000mm). As the machine output is fixed, (for model 105, it is about 180kg/h), the wider the sheet is, the thinner the thickness is.
